DI-60

Add to wishlist

Integrated Digital Morphology Solution: Integrated Digital Morphology Solution: The DI-60 is an optional module that can be integrated into the XN- haematology systemisation line allowing cellular assessment thru an automated pre-classification and pre-characterisation of cells. With an automated cell image analysis, the DI-60 provides a more standardised differential results reducing subjectivity and allows efficient collaboration with real time access to cell images.

DI-60

The DI-60 compact integration platform performs WBC pre-classification, RBC pre-characterization and platelet estimation

Throughput

Peripheral Blood

  • Up to 30 slides/hour (100 WBC + RBC + PLT)
  • Body Fluid : based on 5x5mm area
  • Up to 40 cytospsin slides/hour (100 WBC 10x overview)

Storage capacity

Primary storage: On local hard drive up to 4000 slides (20GB)
Secondary storage: Unlimited when transferred to external storage media

Optional Software:

  • DI- 60 Remote Review Software
  • DI-60 Body Fluid Application
  • Advanced RBC Application

The Sysmex DI-60 is a digital cell imaging analyser that can be connected to the Sysmex XN-3000/XN-3100, XN-3100/ XN-9100 systems providing a fully integrated haematology solution that meets your laboratory’s needs. As part of the XN haematology systemisation portfolio, the DI-60 enhances not only the lab’s productivity, but it also promotes consistency and standardisation of the cell differential results thru an automated pre-classification and pre-characterisation of cells. It facilitates easy collaboration and consultation between morphology experts, creating flexible and cost-effective utilisation of staff and resources through the Sysmex remote review software.

Throughput
  • Peripheral Blood: Up to 30 slides/hour (100 WBC + RBC + PLT)
  • Body Fluid: based on 5x5mm area
  • Up to 40 cytospsin slides/hour (100 WBC 10x overview)
Technology Artificial Neural Network
Slide identification Barcode labelled slides
Storage capacity Primary storage: On local hard drive up to 4,000 slides (20GB)
Secondary storage: Unlimited when transferred to external storage media
Supported Stains
  • Romanowsky stains
  • RAL MCDh stains
  • May Grünwald – Giemsa
  • Wright
  • Wright – Giemsa
WBC Pre-classification segmented and band neutrophils, lymphocytes, monocytes, eosinophils, basophils, metamyelocytes, myelocytes, promyelocytes, blasts, variant lymphocytes, plasma cells
Non-WBC Classification : smudge, artefacts, giant platelets, platelet clumps, erythroblasts (NRBC), Unidentified
RBC Pre-characterisation Anisocytosis , microcytosis and macrocytosis, polychromasia and hypochromasia, poikilocytosis
Body Fluid segmented neutrophils, eosinophils, lymphocytes, macrophages (incl. monocytes), basophils, Others, Unidentified
Slide Scan Application Scanning of user definable areas of a slide
No Pre- classification
Options
  • Sysmex Remote Review Software
  • Sysmex Body Fluid application
  • Advanced RBC Application
null

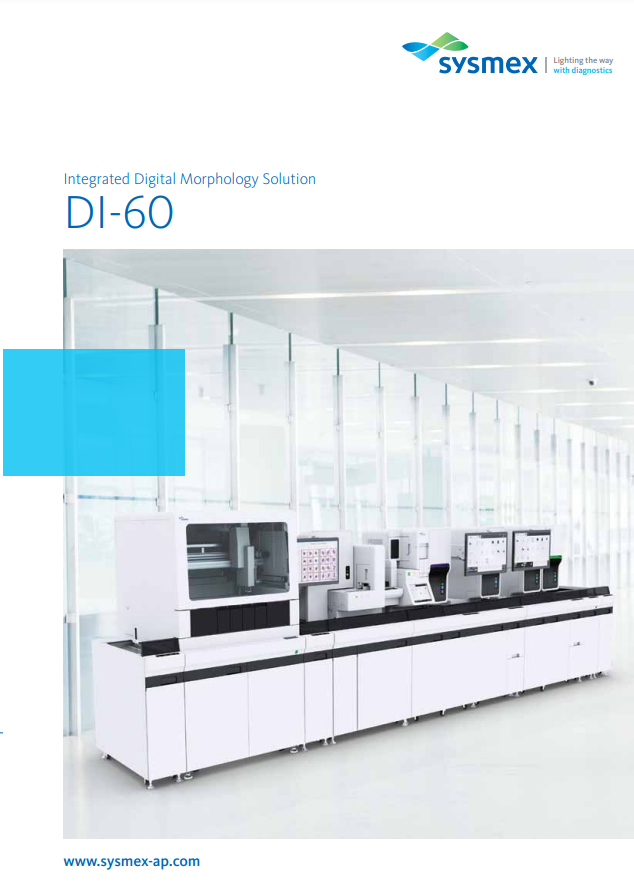

DI-60 brochure

Read More »

Features & Benefits

The Sysmex DI-60 is a digital cell imaging analyser that can be connected to the Sysmex XN-3000/XN-3100, XN-3100/ XN-9100 systems providing a fully integrated haematology solution that meets your laboratory’s needs. As part of the XN haematology systemisation portfolio, the DI-60 enhances not only the lab’s productivity, but it also promotes consistency and standardisation of the cell differential results thru an automated pre-classification and pre-characterisation of cells. It facilitates easy collaboration and consultation between morphology experts, creating flexible and cost-effective utilisation of staff and resources through the Sysmex remote review software.

Specifications
Throughput
  • Peripheral Blood: Up to 30 slides/hour (100 WBC + RBC + PLT)
  • Body Fluid: based on 5x5mm area
  • Up to 40 cytospsin slides/hour (100 WBC 10x overview)
Technology Artificial Neural Network
Slide identification Barcode labelled slides
Storage capacity Primary storage: On local hard drive up to 4,000 slides (20GB)
Secondary storage: Unlimited when transferred to external storage media
Supported Stains
  • Romanowsky stains
  • RAL MCDh stains
  • May Grünwald – Giemsa
  • Wright
  • Wright – Giemsa
WBC Pre-classification segmented and band neutrophils, lymphocytes, monocytes, eosinophils, basophils, metamyelocytes, myelocytes, promyelocytes, blasts, variant lymphocytes, plasma cells
Non-WBC Classification : smudge, artefacts, giant platelets, platelet clumps, erythroblasts (NRBC), Unidentified
RBC Pre-characterisation Anisocytosis , microcytosis and macrocytosis, polychromasia and hypochromasia, poikilocytosis
Body Fluid segmented neutrophils, eosinophils, lymphocytes, macrophages (incl. monocytes), basophils, Others, Unidentified
Slide Scan Application Scanning of user definable areas of a slide
No Pre- classification
Options
  • Sysmex Remote Review Software
  • Sysmex Body Fluid application
  • Advanced RBC Application
